A modular farming and machinery controller with a 3-axis Hall-effect joystick, throttle lever and 46 programmable inputs.

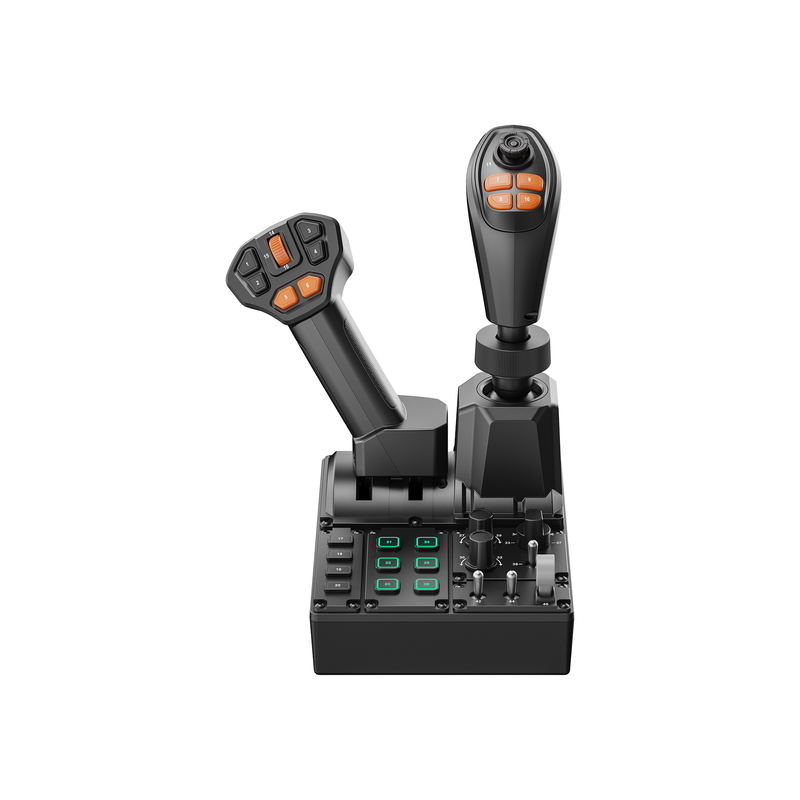

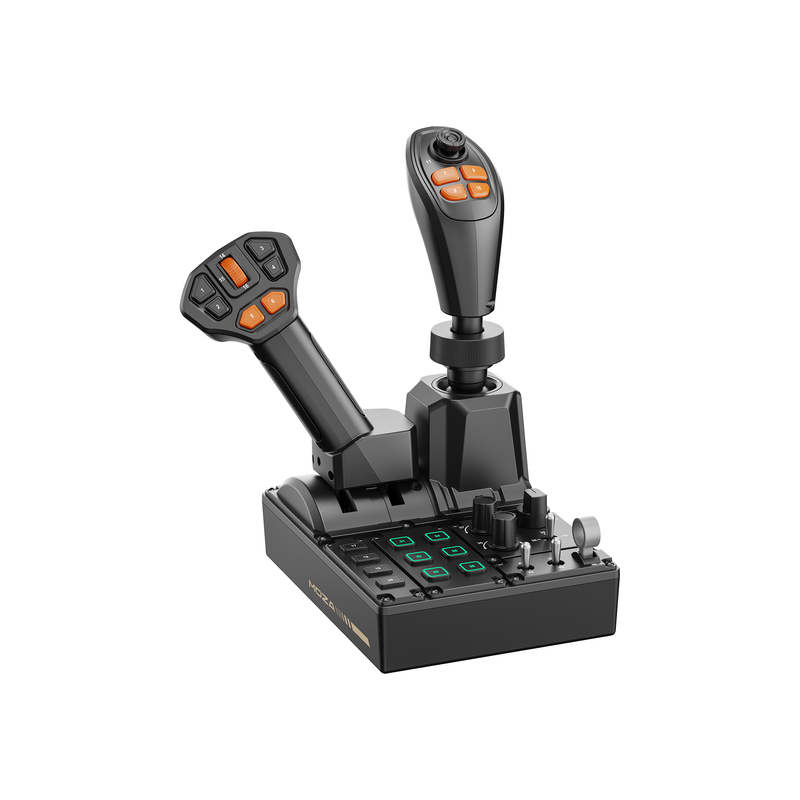

The MOZA FCS Farming Control System combines a joystick, throttle and multifunction panel in one Windows PC controller. The full technical source material shows how the unit is intended for Farming Simulator, construction machinery, loaders, cranes, trucks and buses. It adds a modular grip system, ergonomic hand controls, software customisation, ecosystem integration and game-specific mapping information to the basic 46-input specification.
Why choose the MOZA FCS?
- The 3-axis Hall-effect joystick provides smooth and drift-resistant control for loaders, cranes, hydraulic tools, camera movement and other multi-directional functions.
- Forty-six programmable inputs, an integrated throttle and configurable software reduce keyboard dependence in farming and machinery simulation.
All-in-one farming control

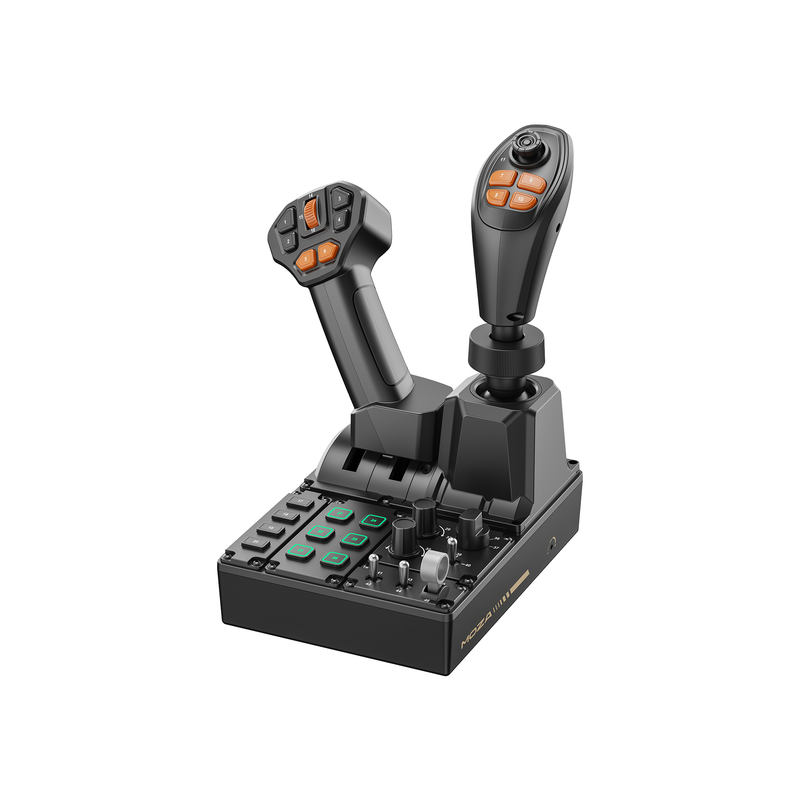

Three-axis Hall-effect joystick
The main joystick uses contactless Hall-effect sensing on three axes. The X and Y axes each provide approximately ±17 degrees of movement, while the rotational Z axis provides approximately ±15 degrees. This allows the stick to control forward, backward, sideways and twisting functions without a conventional contact potentiometer. The resulting input is intended for loaders, excavator arms, cranes, hydraulic attachments and camera or vehicle controls.
Integrated throttle and multifunction panel
The throttle lever provides a continuous control that can be assigned to speed, engine or implement functions. The panel combines buttons, switches and axis controls into a total of 46 programmable inputs. The physical layout is designed to keep frequently used vehicle and machinery functions within reach while reducing the need to use the keyboard.
Ergonomic controls and modular grip system
The long product image highlights an ergonomic grip shape and a modular handle system. The control layout is designed for extended sessions and can be adapted to different simulated machines. The unit groups the main grip, throttle and panel in one compact controller, while remaining suitable for use alongside a steering wheel, pedals or an additional control device.
MOZA ecosystem integration

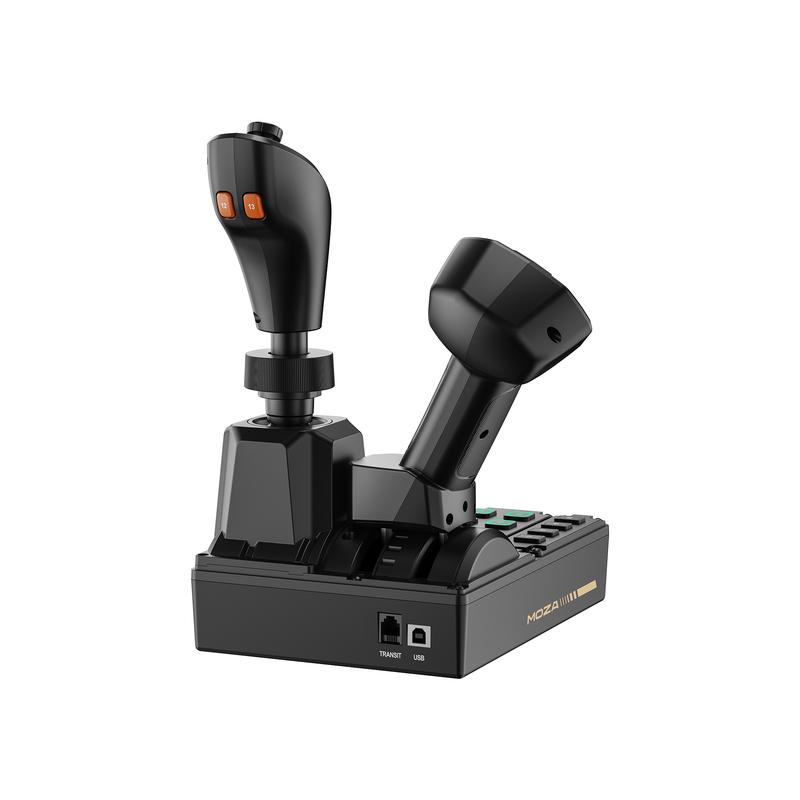

The FCS is intended to complement other MOZA driving and simulation hardware. It connects to the Windows PC by USB and can be used alongside a steering wheel and pedals when the selected game supports multiple input devices. A wheel, pedals and other controls are not included.
Powerful software customisation
MOZA software provides input testing, axis configuration, calibration and function assignment. Available mapping options depend on the game. The interface shown in the technical material allows the user to check the controller layout and configure the individual axes and buttons.
Game support and mapping
The source material presents Farming Simulator 25 as the main plug-and-play title. Farming Simulator 22 and other supported construction, truck and bus simulators require manual control mapping. MOZA's compatibility table includes Farming Simulator 25, Farming Simulator 22, Construction Simulator, Euro Truck Simulator 2, American Truck Simulator and The Bus. The exact set of available commands can differ by game version and installed software.
Compatibility
Platform: Windows PC through USB. Console compatibility is not stated.
Automatic mapping: Farming Simulator 25 is presented as the primary plug-and-play title.
Manual mapping: Farming Simulator 22, Construction Simulator, Euro Truck Simulator 2, American Truck Simulator and The Bus require manual assignment of the supported controls.
Additional hardware: A steering wheel, pedal set and other simulator controls are not included and can be used alongside the FCS when supported by the game.
Specifications
Controller type
Farming and machinery control system
Programmable inputs
46
Joystick axes
3
Joystick sensor
Hall effect
X-axis range
Approximately ±17 degrees
Y-axis range
Approximately ±17 degrees
Z-axis range
Approximately ±15 degrees
Integrated controls
Joystick, throttle and multifunction panel
Dimensions
205 × 201 × 266 mm
Weight
Approximately 1.27 kg
Housing material
ABS and PC
Lighting
RGB, 16.7 million colours
Connection
USB
Platform
Windows PC
What's in the box?
- MOZA FCS Farming Control System
A steering wheel, pedals and additional simulator controls are not included.
Frequently asked questions
Which game is presented as plug and play with the FCS?
MOZA presents Farming Simulator 25 as the primary plug-and-play title. The other listed games require manual control mapping.
Which games are listed for manual mapping?
The source material lists Farming Simulator 22, Construction Simulator, Euro Truck Simulator 2, American Truck Simulator and The Bus.
What can the three-axis joystick control?
The axes can be assigned to supported loaders, cranes, excavator arms, hydraulic implements, cameras or other multi-directional machinery functions.
Does the FCS replace a steering wheel and pedals?
No. It is an additional controller for farming, machinery and vehicle functions. A wheel and pedals can be used alongside it when the game supports multiple devices.
Is the FCS compatible with consoles?
The official information specifies Windows PC use through USB and does not state console compatibility.
